Basic Information
|
| Supported CPU |
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA1200 socket |
| Chipset |
Intel B460 |
| BIOS |
1x 128 Mb flash
UEFI AMI BIOS
ACPI 6.2, SM BIOS 3.2
Multi-language |
| Form Factor |
mATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm) |
| Audio |
Realtek ALC892 Codec
7.1-Channel High Definition Audio |
| Expansion Slots |
| PCI |
1x PCIe 3.0 x16 slot (from CPU)
2x PCIe x1 slots (from PCH) |
| Memory |
| Type |
DDR4 |
| Slots |
4x DDR4 memory slots |
| Supported Memory |
Intel Core i7/i9
Support DDR4-2933 Memory (Max.)
Intel Core i5 (Below)
Supports DDR4-2666 Memory (Max.)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory |
128GB |
| Graphics |
| Graphics |
1x HDMI port, supporting a maximum resolution of 4096x2160 @ 30Hz, 2560x1600 @ 60Hz
1x DVI-D port supports a maximum resolution of 1920x1200 @ 60Hz |
| Connector & Ports |
| HDMI |
1 x HDMI |
| USB (s) |
6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports through the internal USB connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) |
| LAN Port (s) |
1x Realtek RTL8111H Gigabit LAN Controller |
| Supported Storage |
4x SATA 6Gb/s ports 1
2x M.2 slots (Key M)
M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices 1
M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices
Intel Optane Memory Ready 2
Supports Intel Smart Response Technology for Intel Core processors |
| Internal I/O Ports |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 3.2 Gen 1 5Gbps connector (support additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (support additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water pump connector
2x 4-pin system fan connectors
1x front panel audio connector
2x system panel connectors
1x parallel port connector
1x serial port connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x 4-pin RGB LED connector
1x 3-pin RAINBOW LED connector
1x TPM module connector |
| DVI-D (s) |
1 x DVI-D port |
| Warranty Information |
| Manufacturing Warranty |
03 Years Warranty |
| Others |
| Special Features |
Supports RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices
4x EZ Debug LED |

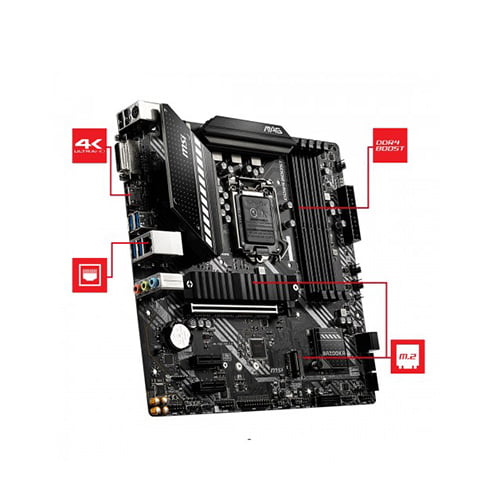

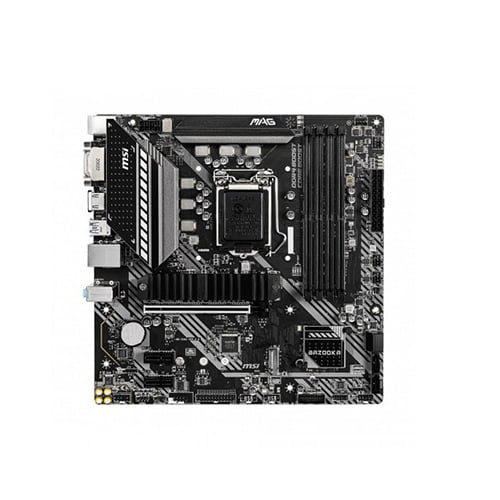

MSI MAG B460M BAZOOKA Intel Motherboard
MSI MAG B460M BAZOOKA owns an extended PWM heatsink and enhanced circuit design assures even high-end Intel CPU to run in full speed with MSI motherboards. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by Delivering the best thermal protection to make sure that SSD maintains maximum performance. MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. Set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically. Supports the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit. MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to assure user system runs stable no matter what. MSI MAG helps all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. MSI brand new Dragon Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving user the best online gaming experience with low latency. Transfer lots of data, music and movies over USB easier. USB 3.2 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 devices. The Mystic Light Extension allows user to have more attractive way to decorate the gaming rig by the LED Strips and still under controlled by the Mystic Light application. Besides, JRGB pin header provides the max 3A(12V) power supply for the up to 3 meters 5050 RGB LED strips showing single color.
