Basic Information
|
| Supported CPU |
Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket |
| Chipset |
Intel H410 |
| Form Factor |
Mirco-ATX Form Factor: 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm) |
| Expansion Slots |
| PCI |
1x PCIe 3.0 x16 slot (From CPU)
1x PCIe 3.0 x1 slot (From PCH) |
| M.2 Socket |
1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
1x M.2 slot with E key for WiFi module only |
| Memory |
| Type |
Dual Channel Memory Architecture |
| Slots |
2 x DIMM |
| Supported Memory |
Intel Core i7/ i9
-Supports up to DDR4 2933 MHz
Intel Core i5 and below
-Supports up to DDR4 2666 MHz
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile (XMP) |
| Maximum Memory |
64GB |
| Graphics |
| Graphics |
1x DVI-D port supports a maximum resolution of 1920x1200 @60Hz
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
| Max Shared Memory |
1GB |

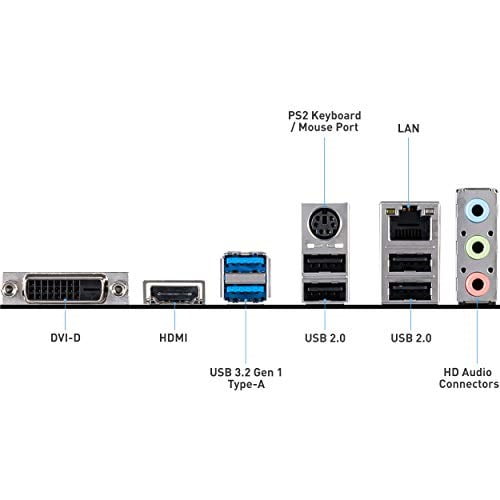

| Connector & Ports |
| HDMI |
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @30Hz |
| USB (s) |
Intel H410 Chipset
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector) |
| LAN Port (s) |
1x Intel I219V Gigabit LAN controller |
| Supported Storage |
Intel H410 Chipset
4x SATA 6Gb/s ports
1x M.2 slot (Key M)
-M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices |
| Audio |
Realtek ALC892 Codec
7.1-Channel High Definition Audio |
| Internal I/O Ports |
1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports)
1x 4-pin CPU fan connector
1x 4-pin system fan connector
1x Front panel audio connector
2x Front panel connectors
1x Serial port connector
1x TPM module connector
1x Chassis Intrusion connector
1x Clear CMOS jumper
4x EZ Debug LED |
| DVI-D (s) |
1x DVI-D port supports a maximum resolution of 1920x1200 @60Hz |
| Warranty Information |
| Manufacturing Warranty |
03 Years |

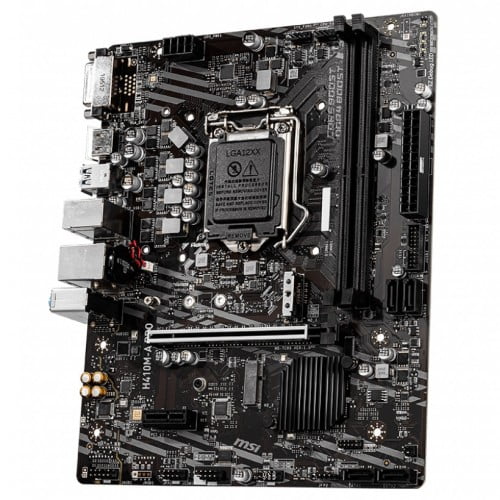

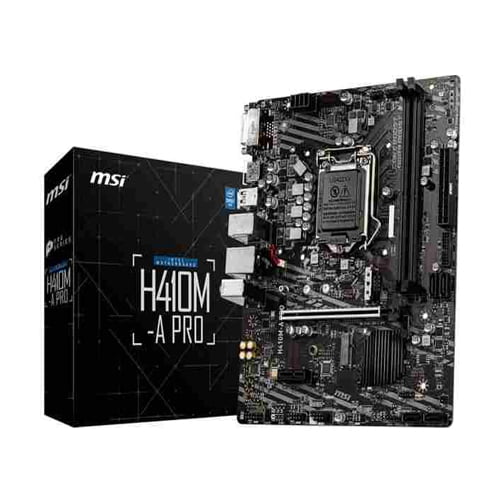

MSI H410M A Pro Intel 10th Gen Micro-ATX Motherboard
Focus on business programs and optimize your workflow with the H410M-A PRO Micro-ATX Motherboard from MSI. Designed to streamline assembly time, MSI allows you to focus on components that will enhance workload efficiency. The H410M-A PRO is ideal for DIY users who wish to replace older out-of-date motherboards or enjoy building from scratch.
Based upon Intel H410 chipset architecture, the H410M-A PRO's LGA 1200 socket allows you to install 10th gen Intel Core i9, Pentium Gold, and Celeron processors. Two dual-channel memory slots allow you to take advantage of DDR4 memory modules with speeds up to 2933 MHz. You can connect several hard-drives with four SATA III and two M.2 ports for enhanced program loading and increasing overall performance. Install graphics, sound, or networking cards with one PCIe 3.0 x16 and one PCIe 3.0 x1 slot. An RJ45 port is also available for wired internet connectivity, and with 7.1-channel high-definition audio, you can experience a wide range of entertainment. This motherboard is only compatible with Windows 10 (64-bit) operating systems.
DIY Friendly Design
Whether you are a seasoned or amateur builder, the H410M-A PRO is designed for simplicity and durability, giving you all the tools you need to put together a PC optimized for your business-level needs. Steel armor PCIe slots are reinforced with heavy soldered connections to prevent bending along with an XL clip for easy device swapping. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting.
Enhanced Performance
MSI constructed the H410M-A PRO with enhanced features to increase system performance. The foundation of this board is built on 2oz thickened copper printed circuits for increased durability and conductivity between components. Core Boost, DDR4 Boost, and Lightning Gen 4 all work together to provide better stability during increased workloads while as well as maximizing transfer-speed bandwidth. Enrich your media experience with MSI's Audio Boost and 4K support, providing clear visuals and crisp sound.
