Summary |

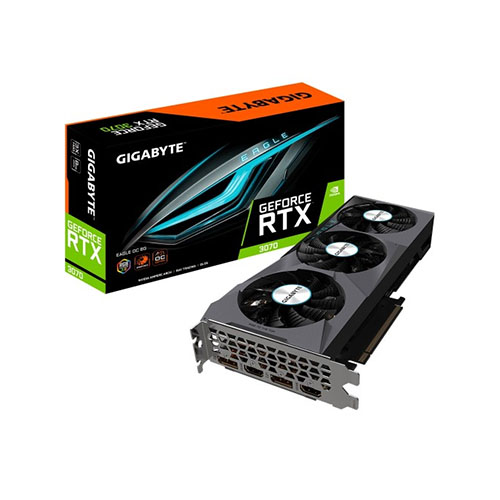

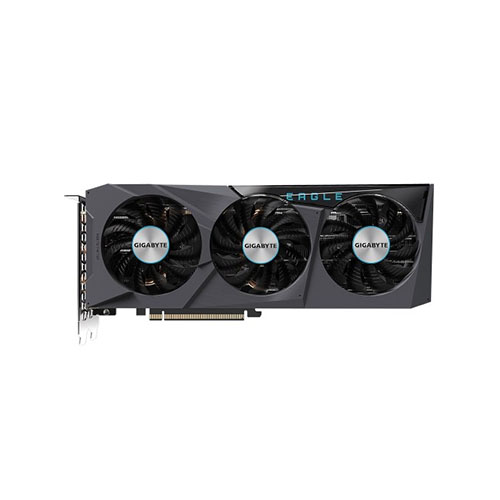

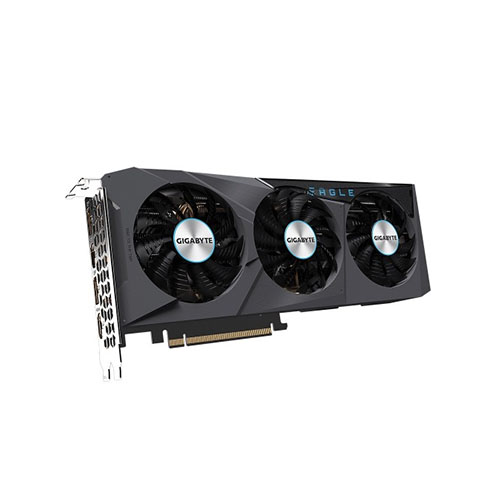

Gigabyte GeForce RTX 3070 EAGLE OC 8G Graphics CardThe Gigabyte GeForce RTX 3070 EAGLE OC 8G is a high-performance graphics card designed for gaming and content creation. It features the NVIDIA Ampere architecture and is built on the 8nm manufacturing process, delivering improved performance and power efficiency. The graphics card has 5888 CUDA cores, 184 TMUs, and 96 ROPs, with a base clock speed of 1500 MHz and a boost clock speed of 1755 MHz. It comes with 8GB of GDDR6 memory running at 14 Gbps, providing fast and smooth performance in high-resolution gaming and demanding applications. The EAGLE OC 8G features Gigabyte's Windforce 3X cooling system, which includes three 80mm fans and a large heatsink with six copper heat pipes. This ensures efficient cooling and stable performance during intensive gaming sessions. The graphics card also includes RGB lighting and support for Gigabyte's AORUS Engine software, which allows for customization of the RGB lighting, fan speeds, and overclocking. In terms of connectivity, the EAGLE OC 8G includes three DisplayPort 1.4a ports and one HDMI 2.1 port, supporting up to four displays simultaneously. It also supports PCIe 4.0, providing faster data transfer speeds.Overall, the Gigabyte GeForce RTX 3070 EAGLE OC 8G is a powerful graphics card that delivers excellent performance for high-end gaming and content creation applications.FeaturesHere are the key features of the Gigabyte GeForce RTX 3070 EAGLE OC 8G graphics card:NVIDIA Ampere Architecture: The graphics card is built on the latest NVIDIA Ampere architecture, delivering improved performance and power efficiency.5888 CUDA Cores: The graphics card has 5888 CUDA cores, providing excellent performance for gaming and content creation.8GB GDDR6 Memory: The EAGLE OC 8G comes with 8GB of GDDR6 memory running at 14 Gbps, providing fast and smooth performance in high-resolution gaming and demanding applications.Windforce 3X Cooling System: The graphics card features Gigabyte's Windforce 3X cooling system, which includes three 80mm fans and a large heatsink with six copper heat pipes. This ensures efficient cooling and stable performance during intensive gaming sessions.RGB Lighting: The EAGLE OC 8G includes RGB lighting, allowing for customization and personalization.AORUS Engine Software: The graphics card supports Gigabyte's AORUS Engine software, which allows for customization of the RGB lighting, fan speeds, and overclocking.DisplayPort and HDMI Ports: The graphics card includes three DisplayPort 1.4a ports and one HDMI 2.1 port, supporting up to four displays simultaneously.PCIe 4.0: The EAGLE OC 8G supports PCIe 4.0, providing faster data transfer speeds.Overall, the Gigabyte GeForce RTX 3070 EAGLE OC 8G is a powerful graphics card that delivers excellent performance, cooling, and customization options for high-end gaming and content creation applications... |
AORUS Radeon RX 6700 XT Elite 12G Graphics Card
AORUS Radeon RX 6700 XT Elite 12G Graphics Card Integrated with GDDR6 192-bit memory interface WINDFORCE 3X Cooling System with alternate spinning fans Screen-cooling Graphene nano lubricant RGB Fusion 2.0 2x DisplayPort 1.4a 2x HDMI 2.1 Protection metal back plate 4 years warranty (Online registration required) AORUS AMD Radeon RX 6700 XT ELITE 12G graphics card delivers ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, amazing AMD Infinity Cache, and up to 12GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.
DESIGN CONCEPT
Neonpunk style emanates in the darkness from the glimmer of high quality metals, showcasing futuristic aesthetics in the darkness of the night. The new era of esports has arrived.
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning, 5 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase air pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. The LED fan indicator can provide an instant display of fan status.
RGB FUSION 2.0
With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.
.. |
MSI Gaming RTX 4060 Ti 8G Gaming Slim X GC30 Monster Hunter Edition 8GB GDDR6 Graphics CardMSI Gaming RTX 4060 Ti 8G Gaming Slim X GC30 Monster Hunter Edition is a high-performance graphics card designed for serious gamers and enthusiasts. With its striking black design and Monster Hunter-themed aesthetics, this card is not only powerful but also visually appealing. It features a robust TRI FROZR 3 thermal design, ensuring efficient cooling and optimal performance during intensive gaming sessions. At its core, the RTX 4060 Ti 8G boasts 4352 GPU cores and operates at an extreme performance core clock of 2550 MHz via MSI Center, with a boost clock of 2535 MHz. This ensures that it can handle the latest games and demanding applications with ease. The card comes equipped with 8GB of GDDR6 video memory, running on a 128-bit memory bus with a memory clock speed of 18 Gbps. This configuration provides ample bandwidth for high-resolution textures and complex graphical effects. The card supports PCI Express Gen 4 x 8, offering fast data transfer speeds, and features multiple display outputs, including three DisplayPort 1.4a ports and one HDMI 2.1a port. The HDMI port supports cutting-edge features such as 4K at 120Hz HDR and 8K at 60Hz HDR, along with Variable Refresh Rate (VRR), making it ideal for high-resolution and high-refresh-rate gaming monitors. For multi-display setups, the card can support up to four monitors simultaneously. It also includes HDCP support, ensuring compatibility with protected content. With a power consumption of 160W, it is recommended to pair this card with a 550W power supply. The single 8-pin power input provides the necessary power for stable operation. The RTX 4060 Ti 8G also includes advanced features like 34 Ray Tracing cores, 48 ROPs, and 136 TMUs, delivering enhanced graphics quality and real-time ray tracing capabilities. It supports the latest DirectX 12 Ultimate and OpenGL 4.6 standards, ensuring compatibility with the latest games and applications. Physically, the card measures 307 x 125 x 46 mm and weighs 2.6 kg, fitting comfortably within most gaming rigs while providing robust performance and stunning visuals, making it an excellent choice for gamers looking to enhance their gaming experience... |
Gigabyte RTX 3070 EAGLE OC 8G Graphics Card Specification
Graphics Chipset
NVIDIA GeForce RTX 3070
Memory Size
8 GB
Memory Type
GDDR6
CUDA Cores (Nvidia)
5888
Core Clock
1770 MHz (Reference Card: 1725 MHz)
Memory Bandwidth (GB/sec)
448 GB/s
Memory Clock
14000 MHz
Card Size
L=282 W=115 H=41 mm
Memory Bus (Bit)
256 bit
Recommended Power Supply
650W
Power Consumption
220 W
Resolution
7680x4320 60Hz
Interface (PCI Express)
PCI-E 4.0 x 16
Power Connector (Pin)
8-Pin 6-Pin
DirectX
12 Ultimate

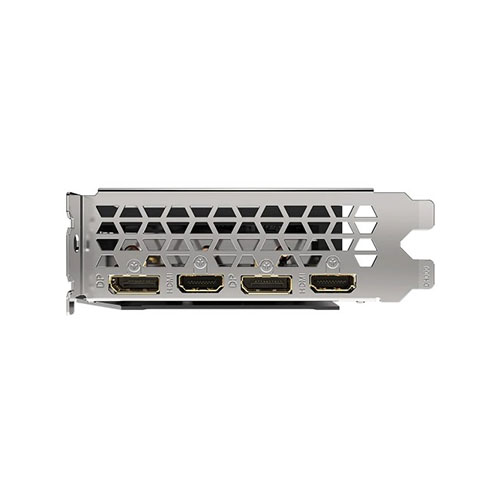

Ports
DisplayPort 1.4a *2 HDMI 2.1 *2
Multi Display
4
OpenGL
4.6
Dimensions
Height: 4.5" / 115.00 mm Length: 11.1" / 282.00 mm Width: 2.5-Slot
Warranty
2 year warranty
Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card
Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card Based on the Ampere architecture and designed to handle the graphical demands of 4K gaming and 1440p gaming at high frame rates, the Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card
brings the power of real-time ray tracing and AI to your PC games. The Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card
features 8GB of GDDR6 VRAM and a 256-bit memory interface, offering improved performance and power efficiency over the previous Turing-based generation. The front panel of the Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K at 60fps, 4K at 120fps, and even up to 10K. The RTX 3070 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 5888 cores to accelerate tasks using CUDA and other APIs. For cooling, Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card implemented the WIND FORCE 3X cooling system. It features two 90mm fans and one 80mm fan. The fans feature unique blades, where the airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. With alternate spinning, the fans reduce turbulence and increase air pressure. The 3D Active Fan provides semi-passive cooling and the fans will turn off when the Gigabyte RTX 3070 EAGLE OC 8G Graphics Card is in a low load or low power state. There is also seven composite copper heat pipes and a large copper plate with direct contact to the GeForce RTX 3070 Eagle 8G Graphics Card and VRAM, which efficiently transfer heat. The extended heatsink design allows air flow to pass through, providing better heat dissipation. It also has RGB Fusion 2.0, which has 16.7 million customizable color options and a variety of lighting effects. You can also use it to synchronize with other AORUS devices. NVIDIA Ampere is the 2nd generation RTX architecture. It features up to twice the FP32 throughput, 2nd Gen RT Core throughput, and 3rd Gen Tensor Core throughput of the previous generation. It also features a Samsung 8N custom process and utilizes GDDR6X VRAM. The NVIDIA GeForce RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination. NVIDIA DLSS (Deep Learning Super Sampling) is AI rendering that boosts frame rates while still providing optimal image quality using the dedicated AI processing Tensor Cores on the GeForce RTX platform. This gives you the performance you need to maximize ray tracing settings and resolutions for an immersive visual experience. The HDMI 2.1 interface provides increased bandwidth, allowing a single cable to output to 8K HDR TVs for ultra-high-resolution gaming. Generate the CSS style for border radius, fonts, transforms, backgrounds, box and text shadows with the online CSS code generators.
Gigabyte GeForce RTX 3070 Eagle 8G Graphics Card Features:
Powered by GeForce RTX 3070 and integrated with 8GB GDDR6 256-bit memory interface
Core Clock 1770 MHz (Reference Card: 1725 MHz)
Display Ports: DisplayPort 1.4a *2 and HDMI 2.1 *2
PCI-Express 4.0 Support
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – synchronize with other AORUS devices
Protection Metal Back Plate
.. |
