Gigabyte B450 Aorus Pro AMD Wifi AM4 Atx Motherboard Specification:
MOTHERBOARD |
Supported CPU |
AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD Ryzen™ 1st Generation processors |
Chipset |
AMD B450 |
Memory |
Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Maximum Memory: 64 GB |
Slots |
4 x DDR4 DIMM |
Supported Storage |
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support) (M2B_SOCKET) 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
LAN |
Intel® GbE LAN chip (10/100/1000 Mbit) |
Audio |
Realtek® ALC1220-VB codec High-Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
USB Port |

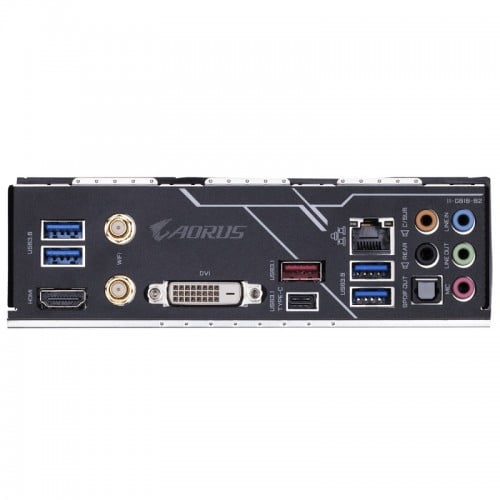

Chipset: 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel 2 x USB 3.1 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
Internal I/O Ports |
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 2 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x system fan/water cooling pump header 1 x CPU cooler LED strip/RGB LED strip header 2 x digital LED strip headers 2 x digital LED strip power select jumpers 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only) 1 x Clear CMOS jumper |
Form Factor |
ATX Form Factor; 30.5cm x 24.4cm |
BIOS |
2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
Others |
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies Intel® Dual Band 802.11ac WIFI & BT 4.2 |
Warranty |
03 years |

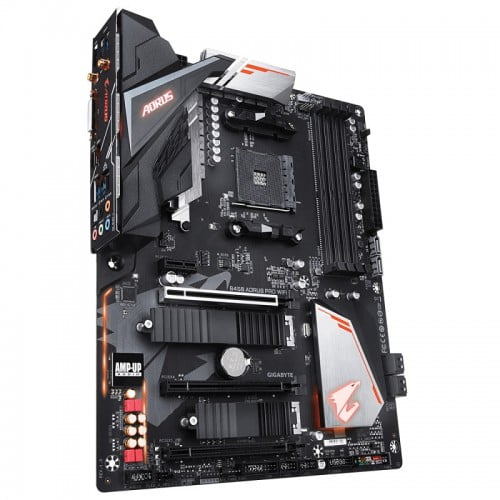

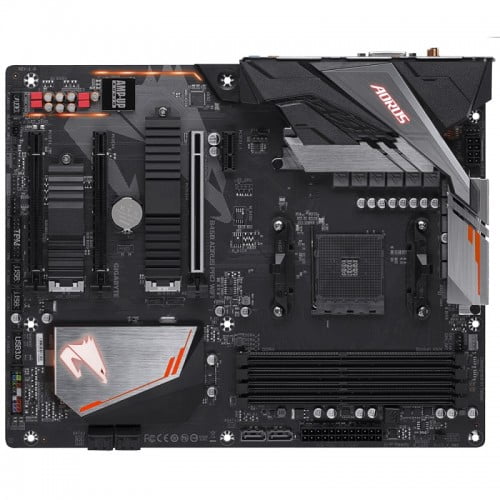

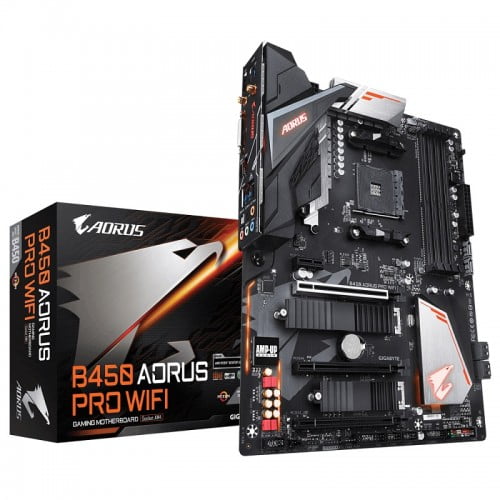

Gigabyte B450 AORUS PRO AMD WIFI Motherboard
The Gigabyte B450 AORUS PRO WIFI Motherboard from Gigabyte. Designed primarily for gaming and content creation, this ATX motherboard uses the B450 chipset to power demanding applications. Up to 64GB of dual-channel DDR4 RAM at 3600 MHz when overlocking can be installed across four memory slots for efficient multitasking and to run high-end games. The durable motherboard also features two M.2 SSD slots and supports up to six SATA III storage drives, which can be put into RAID 0, 1, or 10 configurations. Peripherals such as keyboards and mice can be plugged into the rear panel's four USB 3.1 Gen 1 ports. There are also high-speed USB 3.1 Gen 2 Type-A and Type-C ports, which deliver a throughput of up to 10 Gb/s with compatible drives.
You can connect displays to the Gigabyte B450 AORUS PRO WIFI Motherboard HDMI and DVI-D ports, which are driven by the Ryzen CPU's integrated Radeon Vega graphics. Or install a compatible dedicated graphics card to the PCIe x16 slots, which support AMD Quad-GPU and 2-Way Cross Fire configurations to boost video game frame rates, speed up video rendering, and more. Gigabyte B450 AORUS PRO WIFI Motherboard Connect to the internet wirelessly using the built-in 802.11ac dual-band Wi-Fi, or use the Intel Gigabit Ethernet port for a wired connection optimized by the included cFos Speed network traffic management software. Gigabyte B450 AORUS PRO WIFI Motherboard use Realtek ALC1220-VB 7.1-channel audio creates an immersive gaming and video streaming entertainment experience, and you can customize your experience with the system's RGB lighting headers through the Gigabyte Fusion 2.0 utility. Windows 7 or 10 64-bit is required to take advantage of all of the motherboard's features.
