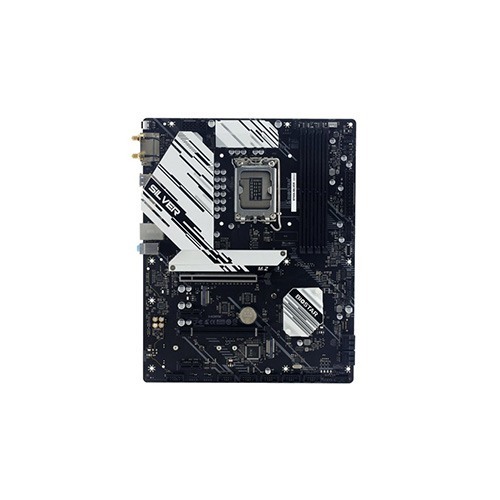

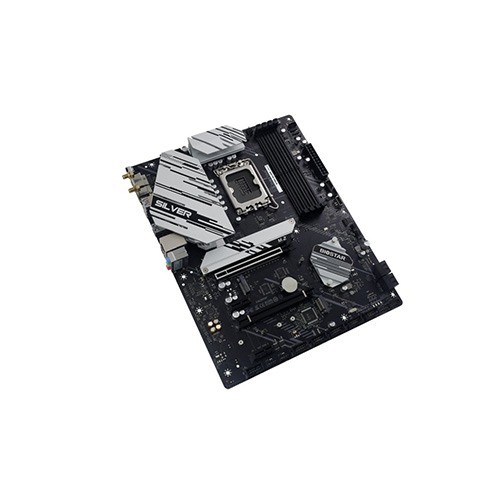

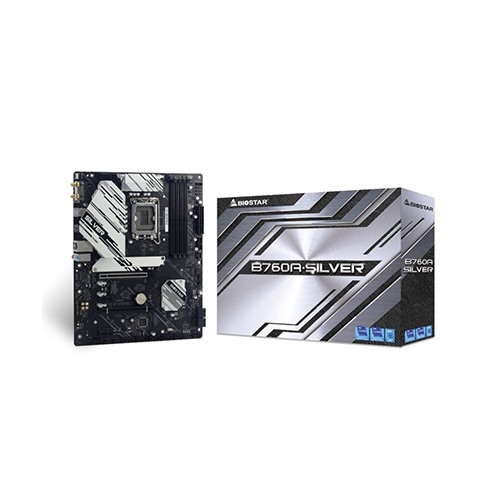

Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard

Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard

Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard is a high-performance motherboard designed to support the latest and future Intel processors. It is compatible with Intel Core i9, i7, i5, i3, Pentium, and Celeron processors in the LGA1700 package, offering robust support for a wide range of computing needs. The Intel B760 chipset provides a solid foundation for reliable performance and advanced features. This motherboard supports dual-channel DDR5 memory with speeds up to 6400+(OC), offering four DDR5 DIMM slots that can accommodate up to 192 GB of memory. Each DIMM supports non-ECC DDR5 modules of 8, 16, 24, 32, and 48 GB. It also supports Intel Extreme Memory Profile (XMP) modules, ensuring optimal performance and stability for high-speed memory configurations. The B760A-SILVER offers extensive storage options with three M.2 sockets and four SATA III ports. The M.2 sockets support PCIe 4.0 x4 NVMe SSDs, providing fast data transfer rates up to 64Gb/s. One of the M.2 sockets also supports SATA III SSDs, adding versatility to the storage configuration. The motherboard supports RAID 0, 1, 5, 10, and Intel Rapid Storage Technology, ensuring data redundancy and improved performance. Networking capabilities are enhanced with the integrated Realtek RTL8125B LAN, supporting speeds up to 2.5 Gb/s for a stable and high-speed internet connection. The motherboard also includes a comprehensive set of ports, such as HDMI 2.1, DP 1.2, USB 3.2 Gen2 Type-C, and multiple USB 3.2 Gen2 and Gen1 ports, providing ample connectivity options for peripherals. Audio is handled by the ALC1220 codec, supporting 7.1 channels of high-definition audio for an immersive sound experience. The motherboard also includes several special features like VIVID LED DJ, BIO-FLASHER, A.I FAN, and LED ROCK ZONE, enhancing both functionality and aesthetics. The B760A-SILVER features an ATX form factor, making it compatible with a variety of cases. It includes multiple expansion slots, including one PCIe 5.0 x16 slot, one PCIe 4.0 x16 slot, and two PCIe 3.0 x1 slots, allowing for additional hardware upgrades. Overall, the Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard is a feature-rich and future-proof choice for building a high-performance PC, providing excellent support for the latest technologies and extensive connectivity options.

Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard Features

• Processor Support: The motherboard supports a wide range of processors, including the 12th, 13th, and 14th generation Intel Core i9, i7, i5, i3 processors, as well as Intel Pentium and Celeron processors in the LGA1700 package. This extensive processor support ensures compatibility with a diverse range of CPUs, catering to various user requirements.
• Chipset and Memory: Powered by the Intel B760 chipset, the motherboard supports dual-channel DDR5 memory, offering impressive speeds of up to 6400+ MHz (OC). With a maximum memory capacity of up to 192 GB and support for Intel Extreme Memory Profile (XMP) memory modules, it provides ample headroom for memory-intensive tasks and overclocking.
• Storage Options: The motherboard offers comprehensive storage capabilities, featuring support for 3 M.2 sockets and 4 SATA III (6Gb/s) ports. It accommodates high-speed NVMe SSDs, with support for PCIe 4.0 x4 (64Gb/s) for M.2 SSDs, delivering exceptional data transfer rates. Additionally, it supports RAID configurations for enhanced data redundancy and performance.

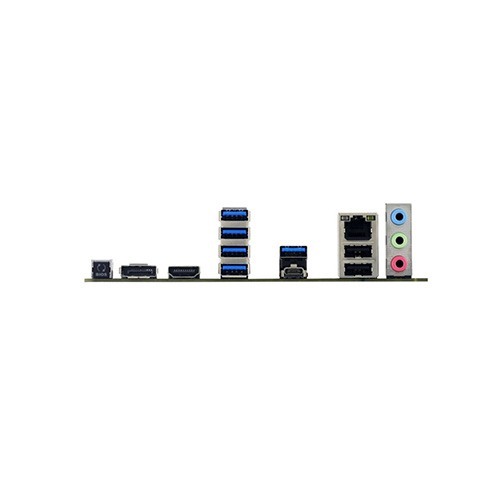

• Networking and Connectivity: Equipped with a Realtek RTL8125B LAN controller, the motherboard offers high-speed networking capabilities, supporting 10/100/1000/2500 Mb/s auto negotiation with half/full duplex capability. The rear I/O ports include a comprehensive array of connectivity options, including USB 3.2 Gen2 Type-C and Type-A ports, USB 2.0 ports, HDMI and DP ports, LAN port, and audio jacks, catering to diverse connectivity requirements.
• Special Features: The motherboard incorporates the ALC1220 audio codec, delivering 7.1 channels of high-definition audio with Hi-Fi capabilities, ensuring an immersive audio experience for gaming and multimedia applications. It also features hardware monitoring for CPU/system temperature, smart/manual CPU fan control, and CPU/DDR voltage monitoring, enhancing system performance and stability.
• Expansion Slots and Form Factor: With an ATX form factor, the motherboard offers ample space for expansion and customization. It includes PCIe 5.0 x16 and PCIe 4.0 x16 slots, providing flexibility for accommodating high-performance graphics cards and expansion cards, catering to the needs of gaming and content creation enthusiasts.
• Warranty: Biostar provides a 3-year warranty for the motherboard, offering users peace of mind and assurance of product quality and reliability.

In summary, the Biostar B760A-SILVER Intel 12th/13th/14th Gen DDR5 ATX Motherboard stands out as a feature-rich and high-performance platform, catering to the needs of enthusiasts, gamers, and content creators, with a focus on performance, connectivity, and expandability.
